Double-direction thrust ball bearings
Double-direction thrust ball bearings

Double-direction thrust ball bearings

Product use:
Inner Diameter: 865-1420mm Outer Diameter: 1030-1720mm Weight: 135-693kg Type: 52000,38000
Details

Deatails:

Double direction thrust ball bearings consist of three rings, along with two ball and cage assemblies. The two ball and cage assemblies are separated by the shaft washer.

Double direction thrust ball bearings are able to accommodate axial thrust loads in both directions. They are not able to tolerate any amount of radial load.

The balls which are used as rolling elements in this type of bearing enable outstanding performance at the highest speeds.

These bearings have a separable design to facilitate easy mounting, dismounting and bearing inspection. This also means that they are easily interchangeable.

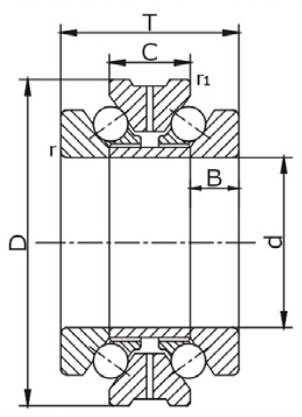

Drawing:

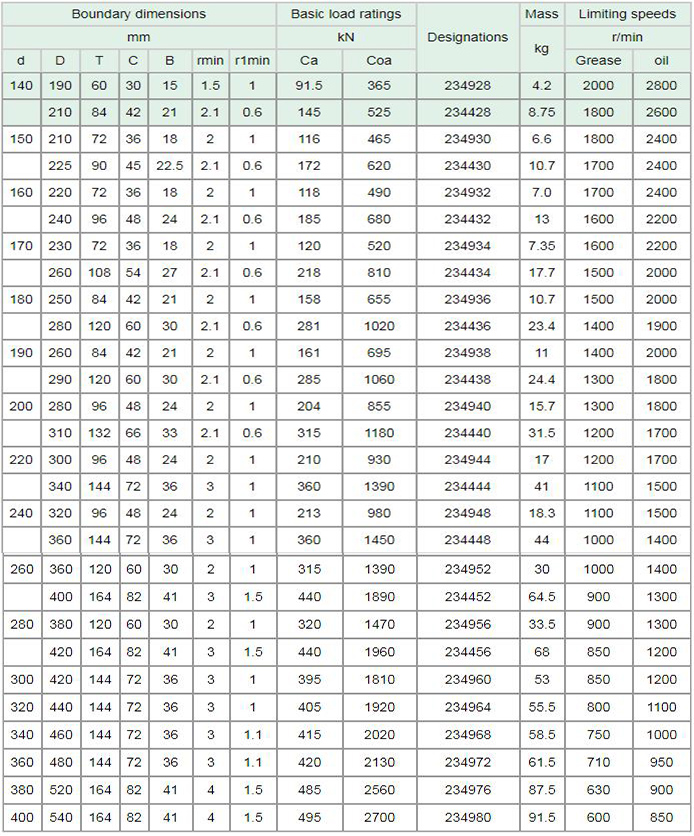

Specifications:



Deatails:

Double direction thrust ball bearings consist of three rings, along with two ball and cage assemblies. The two ball and cage assemblies are separated by the shaft washer.

Double direction thrust ball bearings are able to accommodate axial thrust loads in both directions. They are not able to tolerate any amount of radial load.

The balls which are used as rolling elements in this type of bearing enable outstanding performance at the highest speeds.

These bearings have a separable design to facilitate easy mounting, dismounting and bearing inspection. This also means that they are easily interchangeable.

Drawing:


Specifications:
