Belt Conveyor

Belt Conveyor

Product use:
Belt conveyor is widely used in metallurgy, coal, chemical, hydropower and so on for transporting bulk materials and final products. It features simple structure, convenient installation and big capacity.
Details



Features:

1.Large  conveying capacity and longer conveying distance, up to 20km or longer
2.can conveyor various kinds of bulk material and itemized goods with bulk density of 0.5~2.5t/m³
3.can adopt combined conveying mode of convex curved segment,concave curved segment or straightline segment.
4.according to different transportation request, it can be single used or multiple combined using, also can be used together with other equipments to organize a horizontal or declining conveying system.

5. It can be used between -25ºC~+60ºC working environment, temperature of conveying material under 80ºC with high adaptability.

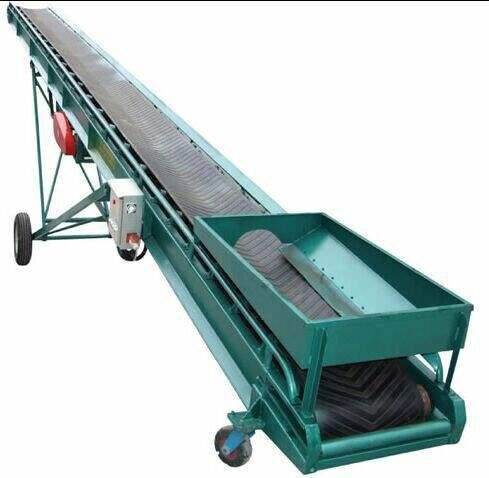

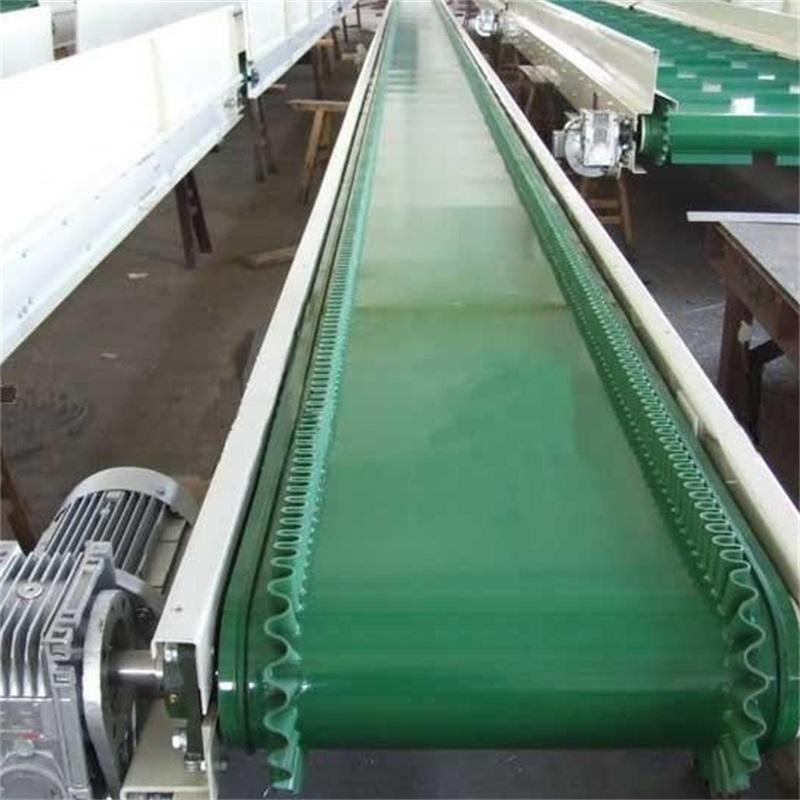

Belt conveyor is composed by frame, belt, roller, tensioning device, transmission device, etc. The frame adopts high quality steel for connection, a certain angle inclined plane is formed because of the different heights of front and rear legs. The machine frame is fixed by belt roller and carrying roller which are used to drive and support the conveying belt. There are two driving ways: geared motor driving and electric roller driving.


Main technical parameter:


Model

Capacity

m3/h

Drum diametermm

motor power (kw)

B500

25-143

500

1.5-3

B650

40-243

630

1.5-4.5

B750

75-500

630

2.2-7.5

B1000

140-770

800

4-11

B1200

200-980

1000

5-22
