Ore Dressing Equipment

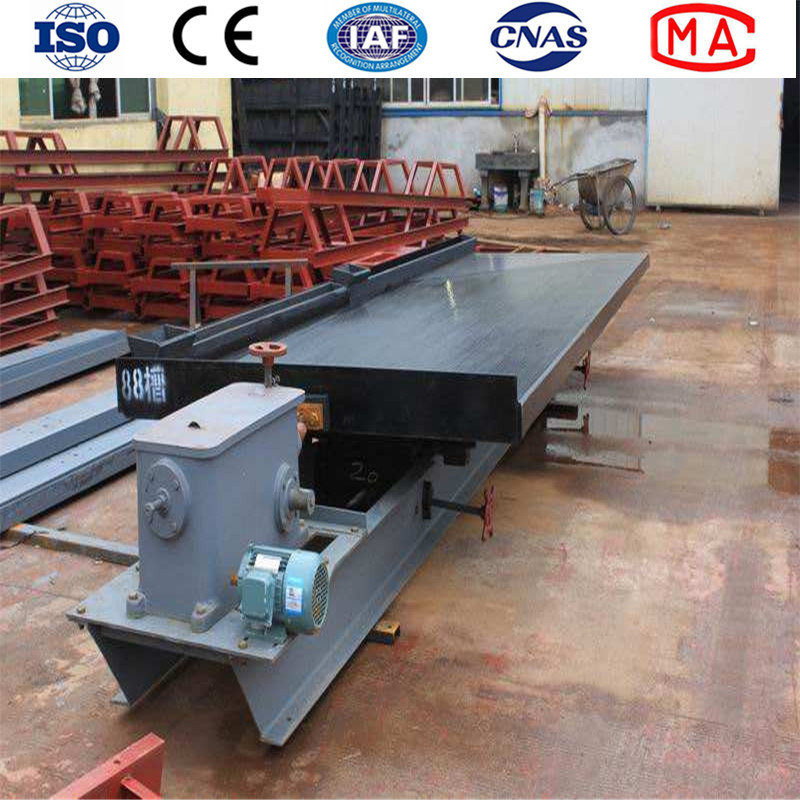

Shaking Table
Shaking Table

Shaking Table

Product use:
Shaking table is applied in ore dressing of non-ferrous metals, ferrous metals, rare metals, such as tungsten, tin, iron, manganese, chrome, titanium, gold, niobium and bismuth, as well as different process of roughing, cleaning, and scavenging.
Details


Working principle of shaking table:
The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch grooveto allow loose layering of ores on the bed surface and fan shaped zoning. Then different products can  be produced.


Deck Type:

Shaking Table has three distinct deck designs available.
Course ore deck  is designed for recovering particles size from 0.5 mm to 2 mm;
Fine sand deck  is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm;
Slime deck  is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074mm

Technical  parameter:

Model

Ls

Table structure

Glass steel material, composite  structure

Table specification

1500-1850X4500mm

Sorting area

7.5 m2

Table direction

Left and right

Horizontal gradient

0.5 degree

Stroke

10-30mm

Stroke frequency

240-360c/min

Coarse sand 2-0.5mm;  fine sand  0.5-0.074mm;  slurry 0.074mm



Working principle of shaking table:
The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch grooveto allow loose layering of ores on the bed surface and fan shaped zoning. Then different products can  be produced.


Deck Type:

Shaking Table has three distinct deck designs available.
Course ore deck  is designed for recovering particles size from 0.5 mm to 2 mm;
Fine sand deck  is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm;
Slime deck  is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074mm

Technical  parameter:

Model

Ls

Table structure

Glass steel material, composite  structure

Table specification

1500-1850X4500mm

Sorting area

7.5 m2

Table direction

Left and right

Horizontal gradient

0.5 degree

Stroke

10-30mm

Stroke frequency

240-360c/min

Coarse sand 2-0.5mm;  fine sand  0.5-0.074mm;  slurry 0.074mm
