Large Castings & Forgings

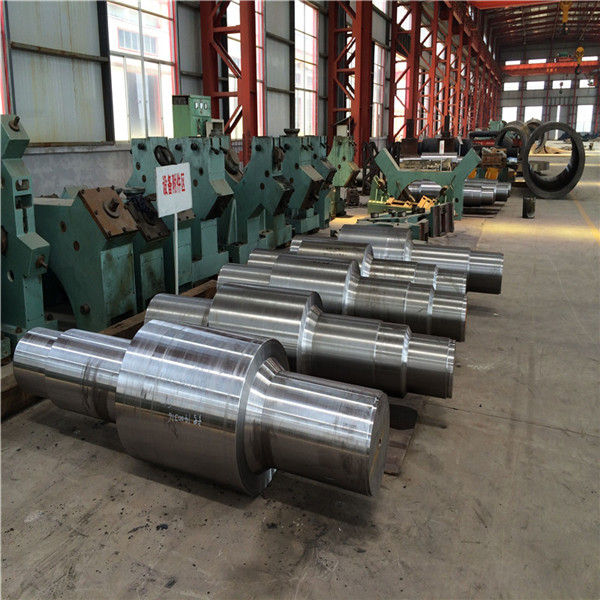

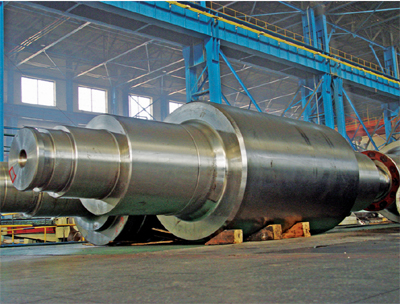

Shaft(pinion shaft, spline shaft)
Shaft(pinion shaft, spline shaft)

Shaft(pinion shaft, spline shaft)

Product use:
CITICHL is the casting & forging center in central-south China, our company has a wealth of experience in the machining industry.
Details

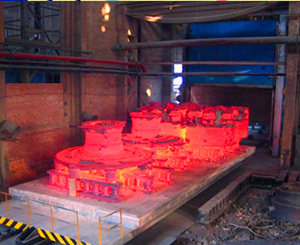

CITICTIC is the casting & forging center in central-south China, possessing 50t electric arc furnace, 60t LF ladle refining furnace, and 60t VD/VOD refining furnace, etc. We can pour 350t liquid steel one time and yields more than 200,000t of  high quality liquid steel and can produce the high quality steel of more than 260 steel grades such as carbon steel, structural alloy steel and the structural steel, refractory steel and stainless steel of special requirement. The maximum weight of casting, gray casting, graphite cast iron and non-ferrous casting is 200t, 30t, 20t and 205t separately.

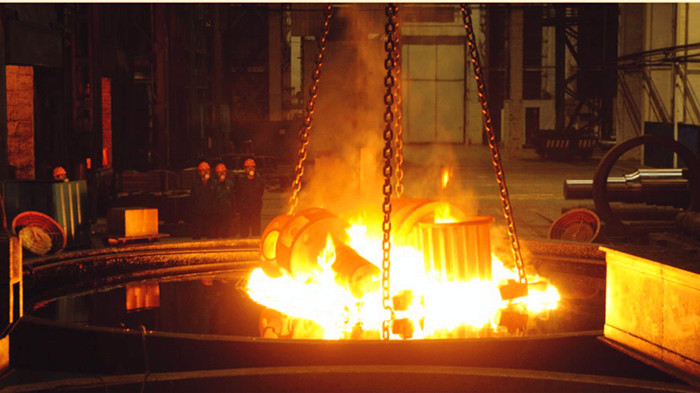

The company is the forging center in central-south China. It is very powerful in forging. The single free forging is 100t(max weight). We can roll rings of different sections of carbon steel, alloy steel, high temperature alloy and non-ferrous alloys such as copper alloy, aluminum alloy and titanium alloy. The maximum diameter is 5.5m and single piece of the forging weighs 10t. We have 8400t, 3150t, 1600t, water press and RAW 200/160-5000/750 large-size ring mill of high precision in Asia made in WAGNER, Germany.



2945 ball mill head1.jpg




Features:


1. Material: stainless steel, carbon steel, alloy steel and as your requests.
2. Standard: Standard: ANSI, API, ASTM, BSI, DIN, GB, ISO, JIS and more standards.


3. Mechanical Properties: customized requirements are accepted.
4. Hardness: customized requirements are accepted.


5. Surface treatment: rust preventive oil and according to your requirements.
6. Application: mainly used in various machinery equipment in the fields of mining, metallurgical, chemical industry, construction, and so on.


7. QA and DOC: chemical composition report, mechanical properties report, UT report, PT report, heat treatment report, dimensions check report, hardness report and more. We can offer third party inspection.

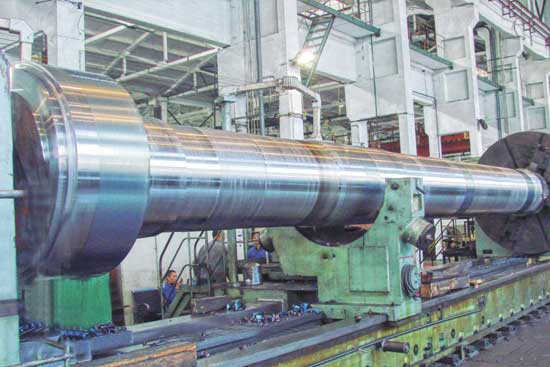

8. Process: raw material purchasing - forging- rough machining - heat treatment - semi machining - finish machining - painting and packing,
various process conditions are available.


9. Certificates: ISO 9001:2008
10. Products ability: Max length: 20m, Max OD: 2m


11. Heat treatment: quenching and tempering, normalizing and tempering.
12. QC: fabrication schedule, fabrication process chart, inspection and test plan
13. Packing: coated with rust preventive oil, seaworthy packing.

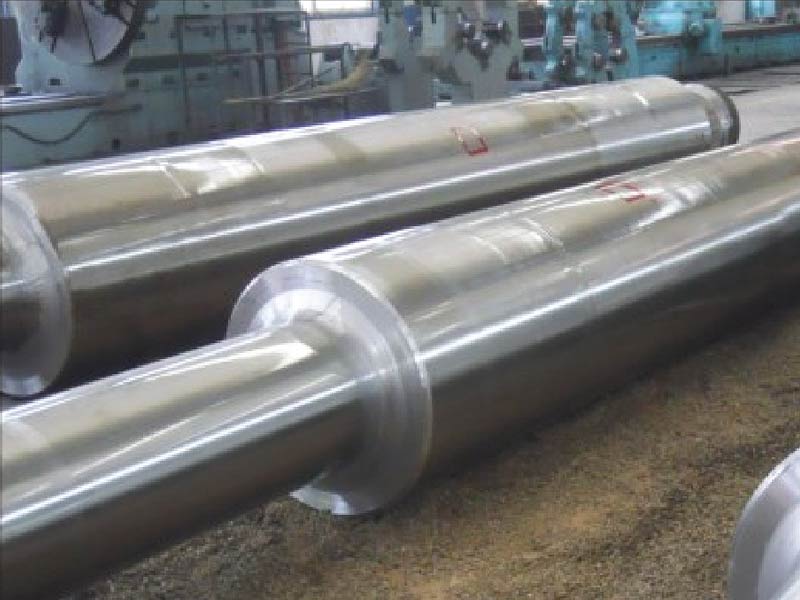

Parameters of Forging Shaft:


Material Forging carbon steel, forging alloy steel
Length Max. 20m
