Mill Lining Plate/Wear Liner plate

CITICHL is a leading comprehensive mill liner supplier in China. For years, CITICHL's mill liner spread to all over the world along with CITICHL's mills. With the property of leading technology and unique expertise, lower cost and higher availability, CITICHL's liner have won high approval from the customer.

The mill liners are used to protect the shell in order to avoid the impact and abrasion from the materials and grinding medium. Different types of mill liners can be used to adjust the movement of materials. CITICHL's mill liners are produced by CITICHL owned Special Steel Workshop and have a large share in the global market with the fine design and excellent performance.

CITICHL's manufacturing ability is not only embodied in the supplying of mill liners for certain mills with detailed specification, but also, and especially in the onsite mapping, model changing and efficiency improving. CITICHLhas the ability to offer solutions for all kinds of mills, such as cement mill, mine mill, ball mill, rod mill, AG mill, SAG mill, and etc.

CITICHL Mill liners are subjected to different combinations of impact and abrasion, as they are used in SAG/AG, ball or rod mills. Our wear parts are manufactured to the highest standards of quality, traceability and delivery, ensuring high levels of reliability for our customers. Also, our wear parts add value to customers’ processes through customized designs.

Features:

 Material: High Manganese Steel, Super-High Manganese Steel, High Chromium Casting Iron, Alloy Steel, Chromium-molybdenum Steel, Low Carbon Steel, or as per the customer requests.
 Hardness: as per your request.
 Impact Value: as per your request.
 Tensile Strength: as per your request.
 Heat Treatment Process: Normalizing, Tempering, Quenching & Tempering.
 Surface treatment: rust preventive oil, or as per your requests.
 Process: raw material purchasing - casting- rough machining - heat treatment - semi-machining - finish machining - painting and packing. Various process conditions are available.
 Standard: ANSI, API, ASTM, BSI, DIN, GB, ISO, JIS.
 QA and DOC: Chemical Composition Report, Mechanical Properties Report, Spheroidization Rate Report, UT Report, PT Report, Heat Treatment Report, Dimensions Check Report, Hardness Report and etc.
 Quality Control: UT Test, MT Test, Visual Inspection, Third Party Inspection, Customer On-site Inspection.

Advantages:
l More than 30 years experience
l ISO9001:2008 Standard certified
l Custom-made design
l High abrasion resistance
l Long service duration
l Easy and fast installation and replacement
l OEM and ODM are available.

Performance Comparison

With several decades of development, CITICHL has become the Manufacturing Base of Lining of Semi-autogenous Mills

1. Optimizing Manufacturing Process, Guarantee Lining Quality
Our high quality linings manufactured by advanced process have covered a wide marketing of semi-autogenous mills.

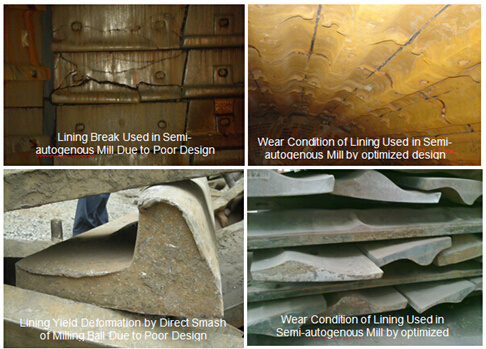

2. Optimizing Lining Design, Eliminating Break of Lining
A main working function of the lining is to lift the milling ball to a reasonable height, then fall along right rack and smash against the material enrichment area at the bottom of the mill in order to crush the material effectively. So it is greatly important of reasonable optimizing the lining design and correct guiding the milling ball running track in order that guarantee the optimized operation condition in the mill and effectively protect the shell lining of semi-autogenous mill, meanwhile, can eliminate lining break, prolong the service life and decrease effectively unit wear of linings and milling ball, and improve the hour production per machine.

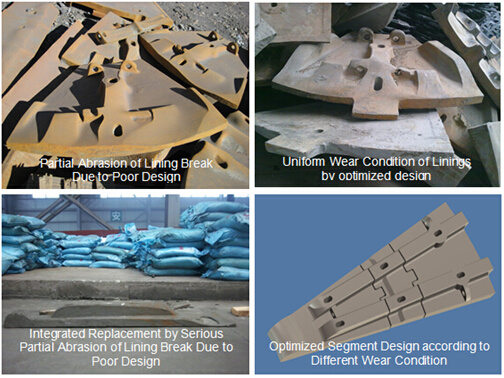

3. Focusing on Detailed Operating Condition, Improving Users' Benefits
Optimizing the lining design based on the wear forms of linings in different operating conditions maximally decrease the crashing function of the linings, and effectively decrease the weight of scrap linings. Improving the shape of linings can effectively improve the relative motion state between milling balls and linings, then decrease lining wear by material and milling balls and prolong the lining service life while reducing the users' production cost.

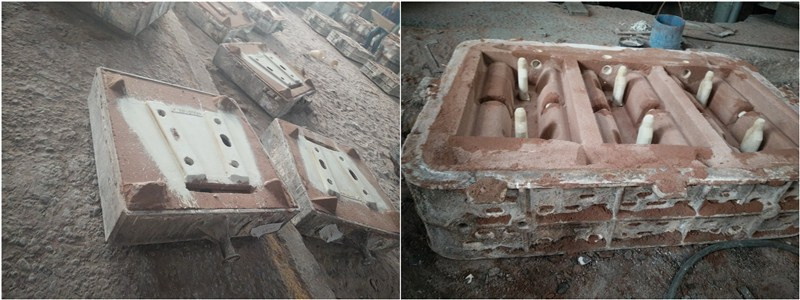

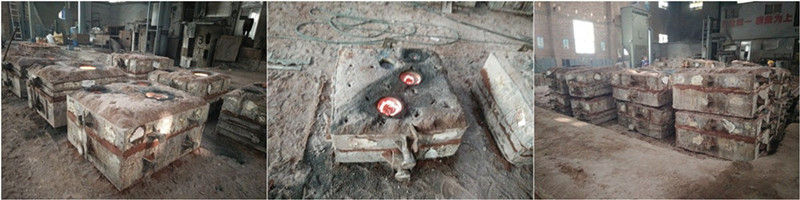

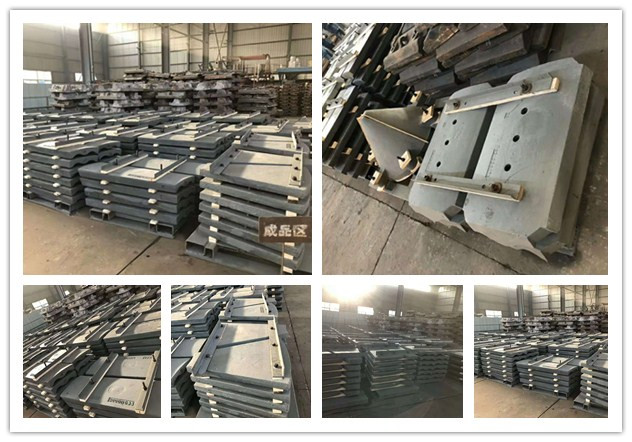

Production site photos:

SAG/AG Mill Liners:

Integrated and/or plate and lifter designs for head and shell liners

Grates

Pulp lifters

Filler rings

Ball Mill Liners:

Single wave liners

Modified single wave liners

Double wave liners

Shell liners

Feed head liners

Discharge end liners

Rod Mill Liners:

Shell liners

Head liners

“Wedge” shell liners

Liner we made for our Australia customers:
