Ore Dressing Equipment

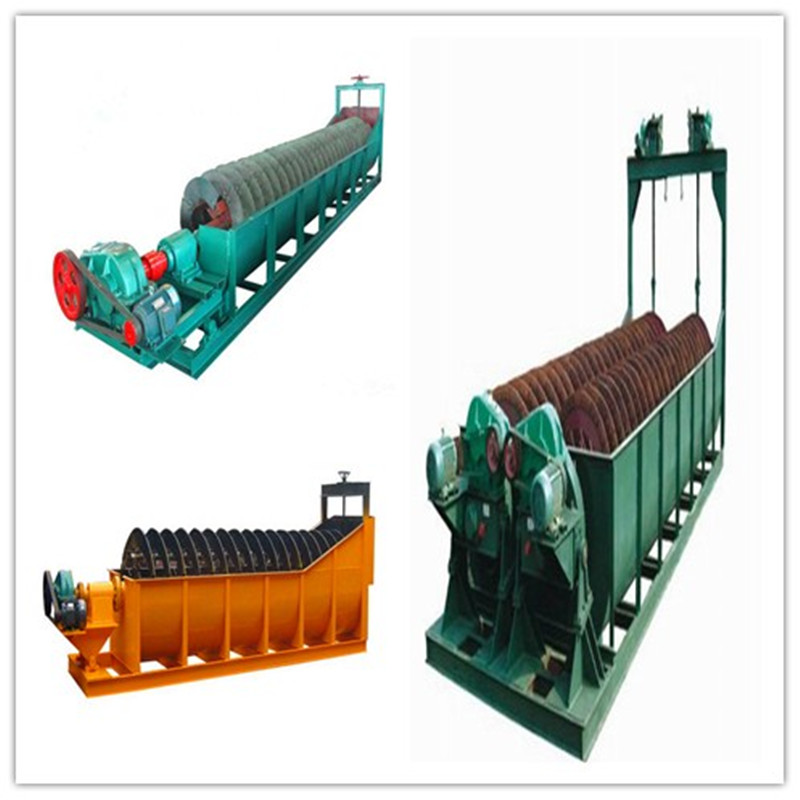

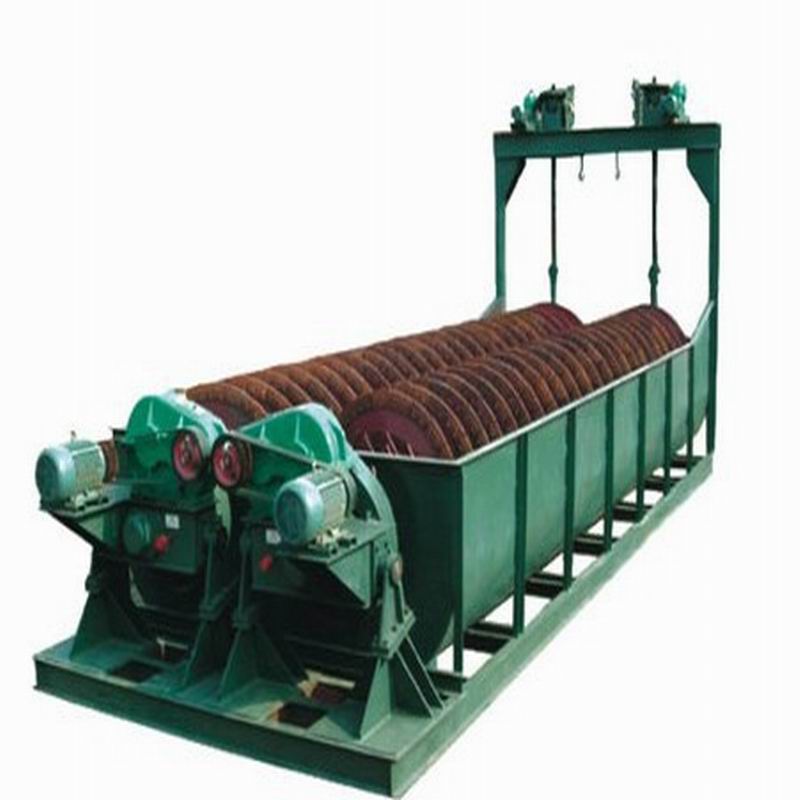

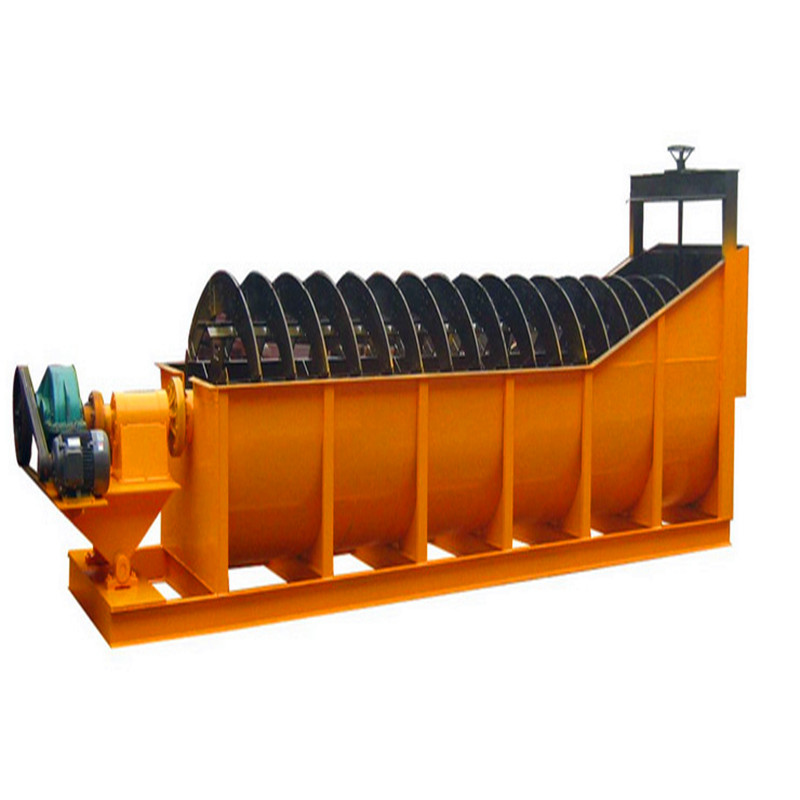

Spiral Classifier
Spiral Classifier

Spiral Classifier

Product use:
Spiral classifier is widely used for grading ore pulp in metal beneficiation flow. It is also used for desliming and dehydrating in washing operation, and usually matched with ball mill in close circuit.
Details




Spiral Classifier is widely used to control material size from Ball Mill in  the beneficiation process, separate mineral sand and fine mud in the gravity  concentration, and clean mud and water in washing mineral process. This machine  has features of simple structure, reliable and convenient operation,  etc.
This spiral classifier can filter materials and send coarse materials  towards the feeding mouth and discharge fine materials from your pipe. The seat  from the machine features channel steel material, as the person is armor plated  as well as the spiral axle is constructed of certain for durability. The  machines lifting equipment can be utilized manually or electronically.



Technical parameters:


Model

Spiral Diameter

Length

of pool

Rotation

Speed

(r/min)

Power(kw)

Dimensions(mm)

Weight

(t)

Drive

Lift

L

W

H

FG-5

500

4500

8-12.5

1.1

--

5430

680

1480

1.6

FG-7.5

750

5500

6-10

3

--

6270

980

1820

2.7

FG-10

1000

6500

5-8

5.5

--

7590

1240

2380

4

FC-10

8400

7.5

9600

1240

2680

6

FG-12

1200

6500

4-6

7.5

2.2

8180

1570

3110

8.5

FC-12

8400

7.5

2.2

10370

1540

3920

11

2FG-12

6500

15

4.4

8230

2790

3110

15.8

2FC-12

8400

15

4.4

10370

2790

3920

17.6

FG-15

1500

8300

4-6

7.5

2.2

10410

1880

4080

12.5

FC-15

10500

7.5

2.2

12670

1820

4890

16.8

2FG-15

8300

15

4.4

10410

3390

4080

22.1

2FC-15

10500

15

4.4

12670

3370

4890

30.7

FG-20

2000

8400

3.6-5.5

11-15

3

10790

2530

4490

20.5

FC-20

12900

11-15

3

15610

2530

5340

28.5

2FG-20

8400

22-30

6

11000

4600

4490

35.5

2FC-20

12900

22-30

6

15760

4600

5640

48.7

FG-24

2400

9130

3.67

15

3

11650

2910

4970

25.7
