Ore Dressing Equipment
Ore Thickener
Ore Thickener

Ore Thickener

Product use:
Thickener is applicable to the concentrate and tailings dehydration processing in beneficiation plant, widely used in metallurgical, chemical, coal, nonmetal ore dressing, environment protection, etc.
Details

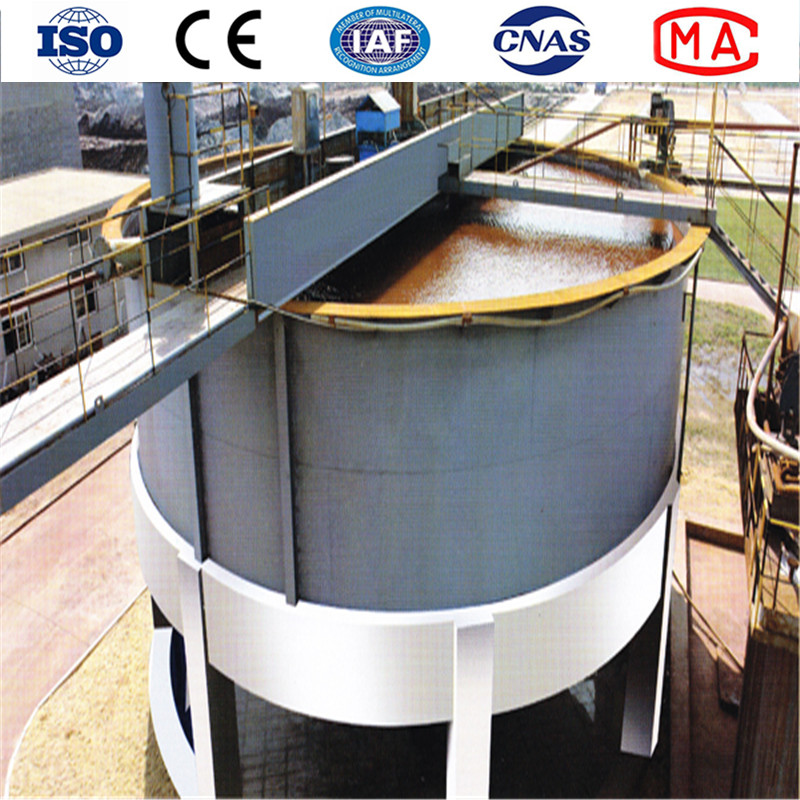

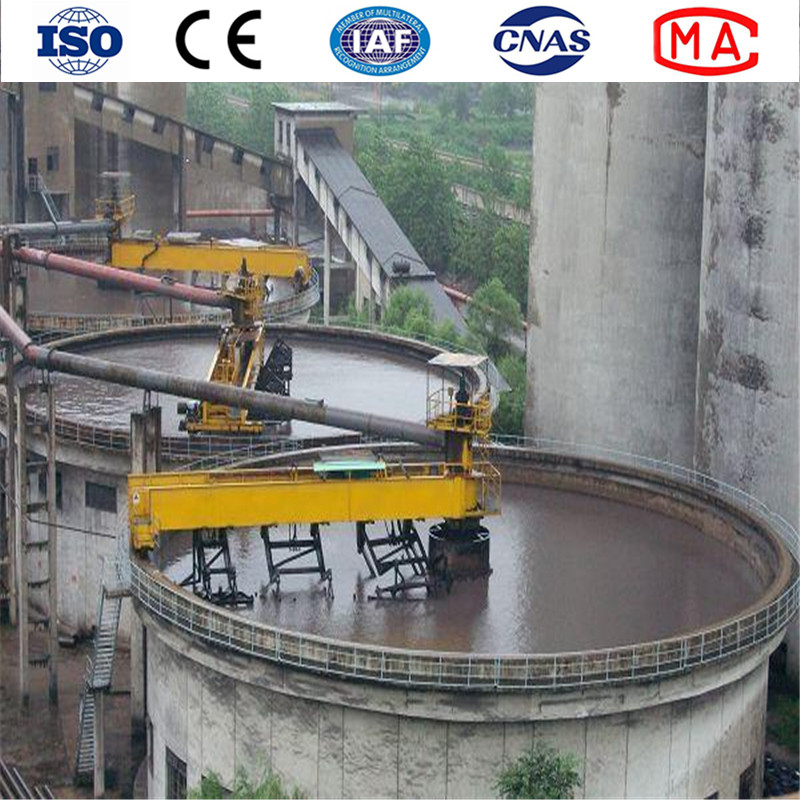

Thickener Introduction:

  High-Efficiency thickener is  a new type of solid-liquid separation equipment, it has a high concentration of  underflow, overflow turbidity small features, are widely used in tailings  processing, hydrometallurgy, environmental engineering, mineral processing,  environmental engineering and many other fields. It is mainly used for the end  of the pulp, metal selection pulp, slurry water, electricity, chemical industry  and clarified slurry concentration to achieve the purpose of  dehydration.

  Thickener is applicable to the concentrate and tailings dehydration  processing in beneficiation plant, widely used in metallurgical, chemical, coal,  nonmetal ore dressing, environment protection, etc.

Coal fines and tailings; Magnetite fines; Copper concentrates and  tailings; Gold/Silver concentrates and tailings; Phosphate slimes; Iron ore  tailings; Lead/Zinc concentrates and tailings;


Main technical parameter:




Model

Thickener

Settlement

Area

(m2)

Motor

Capacity

(t/d)

Dimension

(L*W*H)

Weight

(kg)

Diameter

(mm)

Pool depth

(mm)

Power

(kw)

Rotation

Speed

(r/min)

TNZ-1.8

1.8

1.8

2.55

1.1

910

1.3-5.6

2000*1960*2900

1490

TNZ-3.6

3.6

1.8

10.2

1.1

910

5-24

3917*3787*2900

2875

TNZ-6

6

3

28

1.1

960

14-62

6170*5170*5153

8575

TNZ-9

9

3

63.5

3

960

32-150

10000*10000*5337

5165

TNZ-12

12

3.5

113

3

960

15500*1200*6625

8880

TNZ-15

15

3.6

176

5.5

940

17240*16000*7500

10557
