Mining Grinding

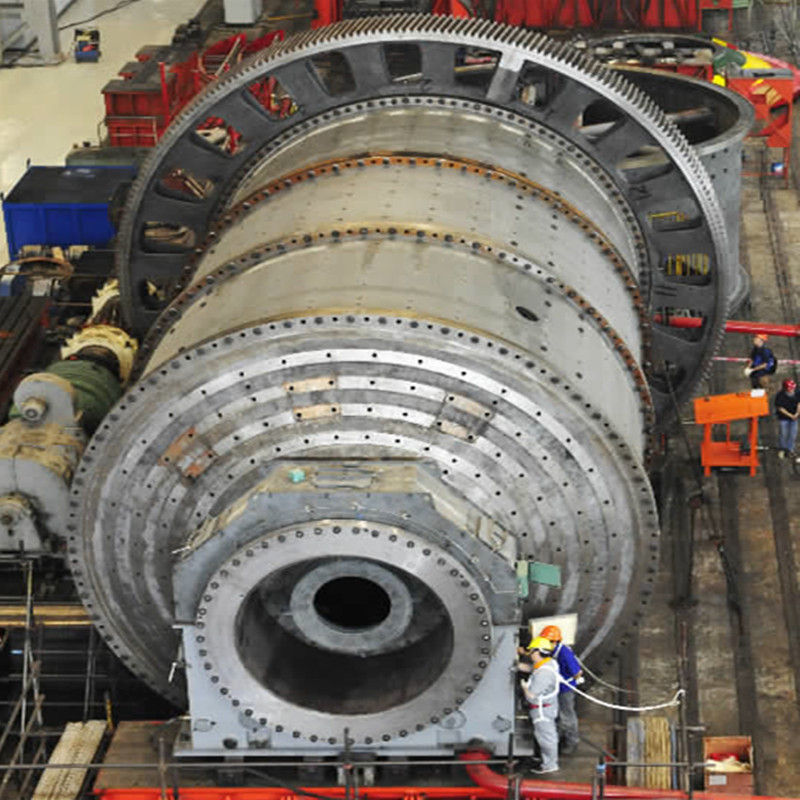

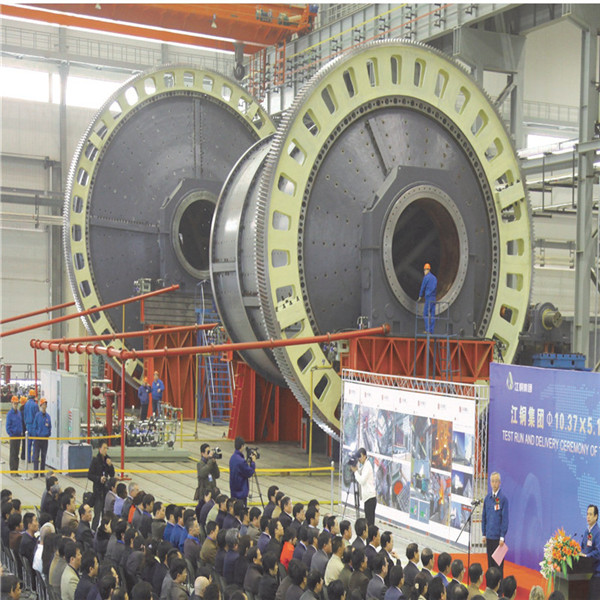

Autogenous Mill / Semi-Autogenous Mill
Autogenous Mill / Semi-Autogenous Mill

Autogenous Mill / Semi-Autogenous Mill

Product use:
These mills are widely used for grinding black and nonferrous metal and nonmetal ores and rocks, especially some usefulminerals with below medium hardness and rocks with uniformly embedded coarse grains.
Details

Autogenous Mill / Semi-Autogenous Mill



Working principle

Autogenous mill, also called no-medium mill.  the characteristic is that the grinding medium is the ore material itself. The  ore material is continuous fed in the rotating horizontal-drum from one side,  under the rotation of drum lining, getting pulverized effect from the collision  and grind of ore itself, at last the fine mine product is forced discharged  by wind (dry type) or chute board (wet  type).



Main technical parameters

Model

Cylinder

Effective

Volume(m³)

Speed

(r/min)

Main  Motor

(KW)

Weight

(t)

Diameter(mm)

Length(mm)

MZ-2410

2400

1000

4.5

22

55

18.5

MZ-3212

3200

1200

9.2

18.2

160

32.8

MZ-4014

4000

1400

16.6

17.6

245

64

MZ-5518

5500

1800

34.6

15

800

178

MZ-6433

6400

3300

107

12.8

2000

306

MZ-7525

7500

2500

107

11.4

2000

355


Some spare parts of ball  mill



ball mill  cylinder



ball mill  liner



girth gear

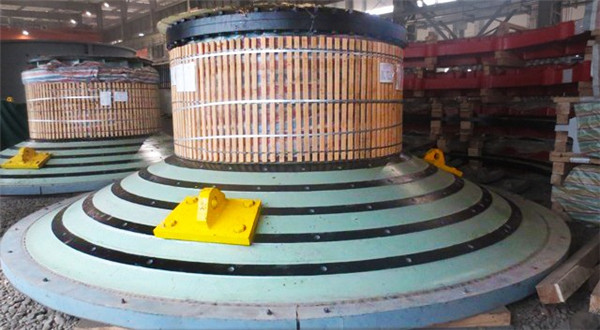

ball mill end  cap



electric  system
