Ore Dressing Equipment
Magnetic Separator

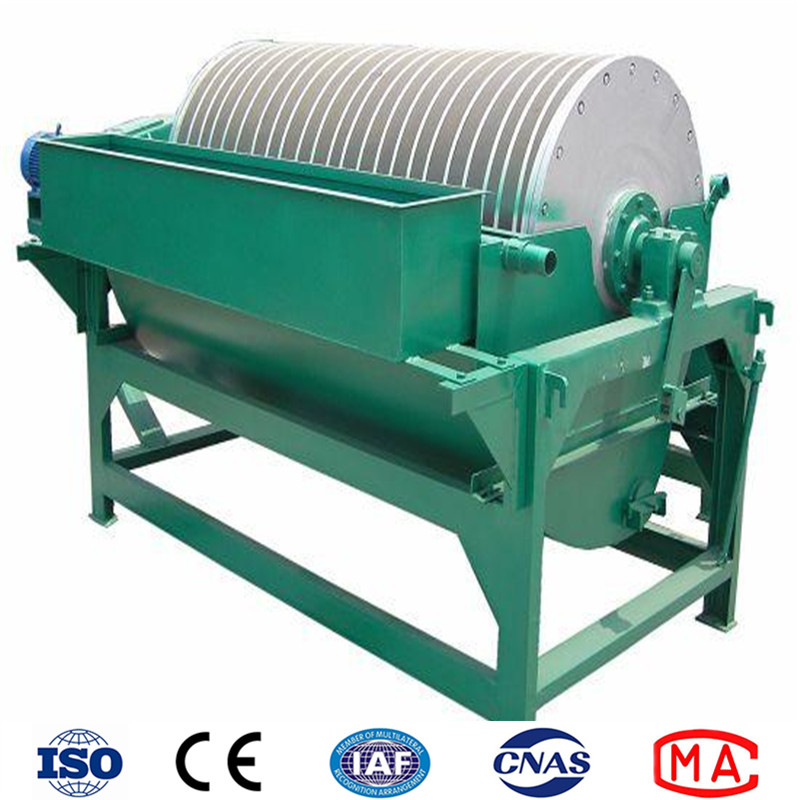

Magnetic Separator

Magnetic Separator

Product use:
Magnetic separator is a new beneficiation machine which has developed for the recent 20 years, and mainly used in wet and dry separation of fine strong magnetic minerals.
Details


Application:

1) Used for pre-concentration in the  magnetic separation mill, remove the waste stones out of the ore and restore  iron grade.

2) Used to recover iron ore from the  tailings and increase the utilization rate of ore resources.

3) Used for the iron and steel factories. Handle the  discarded steel slag and mill scales to recover the iron.


Working  principle:

When the ore pulp flow into the magnetic field, the  strong magnetic minerals are adsorbed on the surface of the drum. The weak  magnetic and non-magnetic minerals are cast off and discharged, while the strong  magnetic minerals on the surface of the drum rotate with the drum and will be  brought out of magnetic field to complete the sorting operation




Main technical parameter:  (wet type)

Specification

Magnetic  strengthgs

Working  capacityt

Motor  powerkw

Weight  kg

CTB600x900

1450

8-15

1.1

910

CTB600x1200

1450

10-18

2.2

1050

CTB600x1800

1500

15-25

2.2

1340

CTB750x1800

1550

30-45

3

2050

CTB900x1800

1650

35-60

4

3000

CTB1050x2400

1650

60-95

5.5

5020

CTB1200x2400

1650

60-120

5.5

6300

CTB1200x3000

1650

80-150

7.5

7800

CTB1500x3000

1650

120-200

11

9600


Main technical parameter:  (Dry type)


Model

Diameter(mm)

Length(mm)

Feeding  Size(mm)

Processing  Capacity(t/h)

Power
(kw)

CTG6012

600

1200

0-2

10-15

1.5

CTG6018

600

1800

0-2

15-30

2.2

CTG7518

750

1800

0-2

20-45

2.2

CTG9018

900

1800

0-3

40-60

3

CTG1018

1050

1800

0-3

50-75

5.5

CTG1024

1050

2400

0-3

60-120

5.5

CTG1224

1200

2400

0-3

85-180

7.5

CTG1230

1200

3000

0-3

100-180

7.5






Application:

1) Used for pre-concentration in the  magnetic separation mill, remove the waste stones out of the ore and restore  iron grade.

2) Used to recover iron ore from the  tailings and increase the utilization rate of ore resources.

3) Used for the iron and steel factories. Handle the  discarded steel slag and mill scales to recover the iron.


Working  principle:

When the ore pulp flow into the magnetic field, the  strong magnetic minerals are adsorbed on the surface of the drum. The weak  magnetic and non-magnetic minerals are cast off and discharged, while the strong  magnetic minerals on the surface of the drum rotate with the drum and will be  brought out of magnetic field to complete the sorting operation




Main technical parameter:  (wet type)

Specification

Magnetic  strengthgs

Working  capacityt

Motor  powerkw

Weight  kg

CTB600x900

1450

8-15

1.1

910

CTB600x1200

1450

10-18

2.2

1050

CTB600x1800

1500

15-25

2.2

1340

CTB750x1800

1550

30-45

3

2050

CTB900x1800

1650

35-60

4

3000

CTB1050x2400

1650

60-95

5.5

5020

CTB1200x2400

1650

60-120

5.5

6300

CTB1200x3000

1650

80-150

7.5

7800

CTB1500x3000

1650

120-200

11

9600


Main technical parameter:  (Dry type)


Model

Diameter(mm)

Length(mm)

Feeding  Size(mm)

Processing  Capacity(t/h)

Power
(kw)

CTG6012

600

1200

0-2

10-15

1.5

CTG6018

600

1800

0-2

15-30

2.2

CTG7518

750

1800

0-2

20-45

2.2

CTG9018

900

1800

0-3

40-60

3

CTG1018

1050

1800

0-3

50-75

5.5

CTG1024

1050

2400

0-3

60-120

5.5

CTG1224

1200

2400

0-3

85-180

7.5

CTG1230

1200

3000

0-3

100-180

7.5
