Sand Production Equipment
Vibrating Feeder

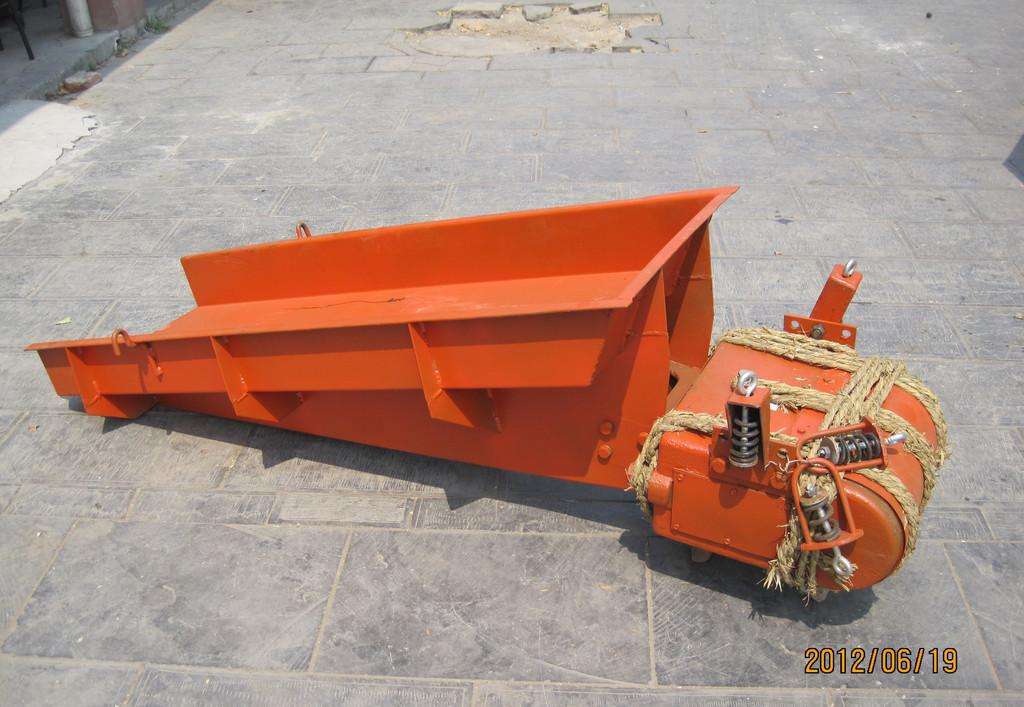

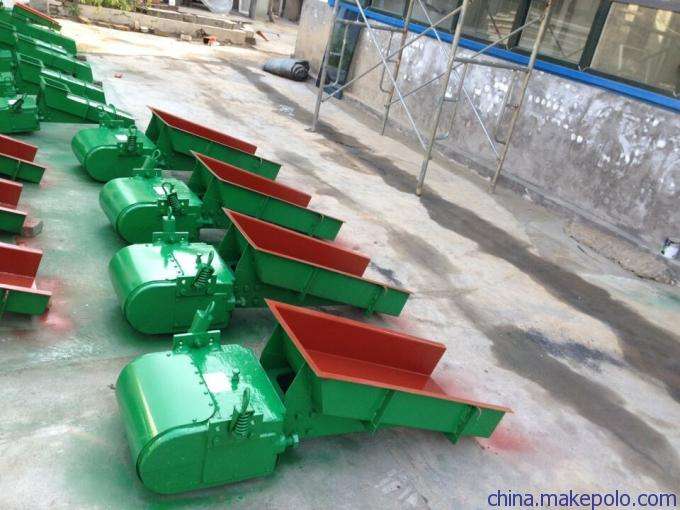

Vibrating Feeder

Vibrating Feeder

Product use:
Vibrating feeder can send various materials into the crushers uniformly, regularly, continuously, also separate the raw materials primarily. It is widely used in metallurgy, coal mine, construction materials and so on.
Details



Vibrating feeder can feed lump or granulated materials to the other devices evenly and continuously. In sand and gravel production line, the continuous feeding of the Vibrating feeder helps avoid the blockage at receiving hopper. With easy flow adjustment, low noise and energy consumption, vibrating feeder is applied to crushing and screening production lines on crushing site, in mining, metallurgy, building material, chemistry, mineral processing, and coal industries.

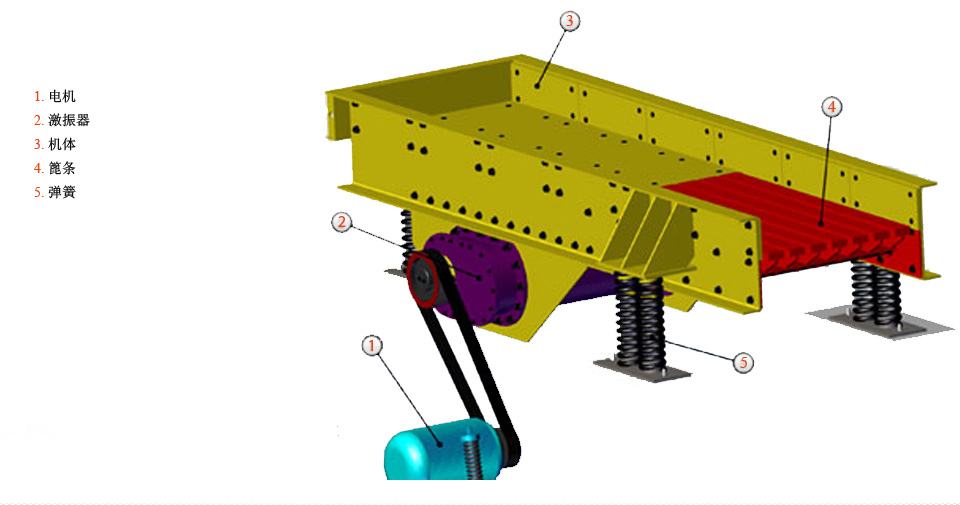

Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate.   Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening   part, smaller parts will fall down, and avoiding the further crushing, so screening purpose can be reached.


Main Technical parameter


Model

Trough size

(mm)

Max. feeding size

(mm)

Processing capacity

(t/h)

Motor

power

(kw)

Obliquity

of material trough

(°)

Total

Weight

(kg)

Dimensions

(L×W×H)

(mm)

GZD-650×2300

2300×650

300

80

1.1×2

10

2798

2300×1360×780

GZD-750×2500

2500×750

350

100

1.1×2

10

3260

2500×1460×780

GZD-850×3000

3000×850

400

120

3×2

10

3607

3110×1800×1600

GZD-1000×3600

3600×1000

500

150

5.5×2

5

3895

3850×1950×1630

GZD-1100×4200

4200×1100

580

240

5.5×2

5

4170

4400×2050×1660

GZD-1100×4900

4900×1100

580

280

7.5×2

5

4520

5200×2050×1700

GZD-1300×4900

4900×1300

650

450

11×2

5

5200

5200×2350×1750

GZD-1500×5600

5600×1500

1050

450-800

12×2

10

7500

5700×2000×1750

ZSW-380×95

3800×960

500

100-160

11

0

4823

3920×1640×1320

ZSW-490×110

4900×1100

630

150-320

15

0

6647

4980×1830×1320

ZSW-600×130

6000×1300

750

400-600

22

0

9250

6082×2580×2083

ZSW-600×150

6000×1500

800

500-700

30

0

10190

6086×2662×1912

ZSW-600×180

6000×1800

800

700-1000

37

0

13750

6310×3262×2230
