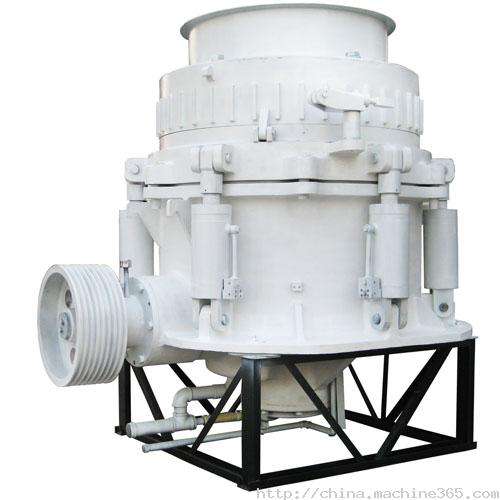

PY series hydraulic cone crusher is the latest model of our company, which combines sing cylinder cone crusher and PYF cone crusher. It adopts a more advanced design concept. Better crushing frequency and uneven distance is used, so content of the grains is higher in crushing products.
1. Reasonable structure, advanced crushing principle and technical data, reliable work and low cost.
2. Srong crushing ability, high efficiency productivity, high capacity.
3. Hydraulic system is reliable, provide safe and effective overload protection.
4. Types of crushing cavity are for wide range of product size requirement.
5. Use hydraulic adjustment and hydraulic clean cavity setting, much increase automation.
6. Replace the mantle and concave without any compounds.
Model |
Dia of crushing head (mm) |
Max Feed Size (mm) |
Adjusting range of output size (mm) |
Capacity (t/h) |
Motor Power (kw) |
Weight (t) |
Overall Dimension L*W*H(mm) |
PYB-600 |
600 |
65 |
12-25 |
15-25 |
30 |
5 |
2800*1300*1700 |
PYD-600 |
600 |
35 |
3-15 |
5-23 |
30 |
5.5 |
2800*1300*1700 |
PYB-900 |
900 |
115 |
15¬20 |
50-90 |
55 |
10.2 |
3050*1640*2350 |
PYZ-900 |
900 |
60 |
5-20 |
20-65 |
55 |
10.2 |
3050*1640*2350 |
PYD-900 |
900 |
40 |
3-13 |
15-50 |
55 |
10.3 |
3050*1640*2350 |
PYB-1200 |
1200 |
145 |
20-50 |
110-200 |
110 |
24.7 |
4152*2300*2980 |
PYZ-1200 |
1200 |
100 |
8-25 |
50-15 |
110 |
25 |
4152*2300*2980 |
PYD-1200 |
1200 |
50 |
3-15 |
18-105 |
110 |
25.6 |
4152*2300*2980 |
PYB-1750 |
1750 |
215 |
25-60 |
280-480 |
155-160 |
50.3 |
4870*3800*4192 |
PYZ-1750 |
1750 |
185 |
10-30 |
115-320 |
155-160 |
50.3 |
4870*3800*4192 |
PYD-1750 |
1750 |
85 |
5-15 |
75-230 |
155-160 |
50.4 |
4870*3800*4192 |
PYB-2200 |
2200 |
300 |
30-60 |
590-1000 |
260-280 |
80 |
7705*3430*4852 |
PYZ-2200 |
2200 |
230 |
10-30 |
200-580 |
260-280 |
80 |
7705*3430*4852 |
PYD-2200 |
2200 |
100 |
5-15 |
120-340 |
260-280 |
81.4 |
7705*3430*4852 |
