Mining Grinding

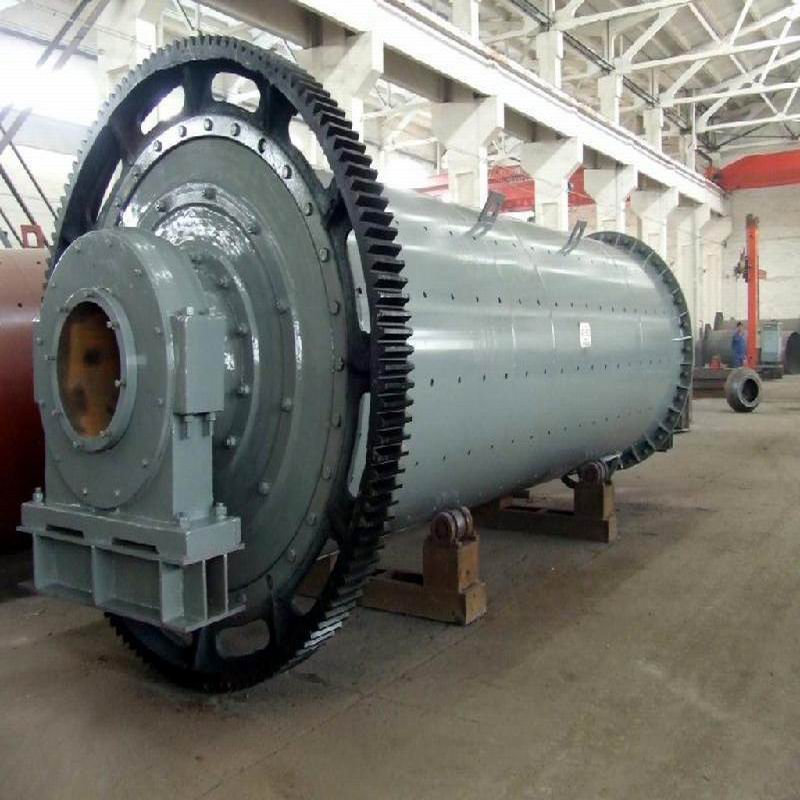

Ball Mill
Ball Mill

Ball Mill

Product use:
CITICHL can produce below 8m ball mills. The ball mill is mainly used for grinding ores and other materials, and widely used for ore processing, building material, chemical industry and other industries.
Details

BALL MILL


Introduction

Mill is the key equipment for grinding  materials to get the product as per the requirement of process, widely used in  electric, ferrous (non-ferrous) metal, nonmetal mining, chemical & building  material industries.

Mill could be sorted as following:


As per the grinding media:ball mill, rod mill and AG mill (without grinding media)
As per  material discharging mode: wet grid mill, dry grid mill & overflow  mill.
As per driving mode:side & central driving.  The former is more popular now.


As per driving configuration:
a.  Asynchronous motor driving: Asynchronous motor + Reducer + Pinion + Girth  gear

b. Synchronous motor driving: Synchronous  motor + Air clutch +Pinion + Girth gear
c. Asynchronous motor + reducer  +diaphragm coupling


1. Main bearing, adopting slide bearing,  rolling bearing or sliding-shoe-bearing as per requirement.
2. Liner,  adopting wear-resistant metal liner, rubber liner, magnetic liner and alumina  liner (high aluminum lining brick).
3. Following items as per options:  inching driving device, high & low pressure lubrication station, spraying  lubrication device of gear, jacking device & PLC control system.


Technical patameter table of overflow Ball mill


Model

Cylinder

Feed size (mm)


Max. ball
Loading
(t)


Speed
(r/min)


Capacity
(t/h)

Discharging size
(mm)

Main Motor
(KW)

Weight  (t)

Diameter
(mm)

Length
(mm)

MQY-0918

900

1800

≤20

1.5

36-38

0.65-2

0.075-0.89

18.5

4.6

MQY-0930

900

3000

≤20

2.7

36

1.1-3.5

0.075-0.89

22

6.7

MQY-1224

1200

2400

≤25

3

36

1.5-4.8

0.075-0.6

30

11.9

MQY-1230

1200

3000

≤25

3.5

36

1.6-5

0.074-0.4

37

12.8

MQY-1245

1200

4500

≤25

5

32.4

1.6-5.8

0.074-0.4

55

13.8

MQY-1530

1500

3000

≤25

7.5

30

2.8-6.3

0.074-0.4

75

18

MQY-1545

1500

4500

≤25

11

30

3.8-9

0.074-0.4

110

21

MQY-1830

1830

3000

≤25

11.5

26.6

4.5-12.5

0.074-0.4

130

33

WQY-1845

1830

4500

≤25

15

26.8

6-15.5

0.074-0.4

155

35.5

MQY-2130

2100

3000

≤25

15

23.8

5.8-18

0.074-0.4

155

43

MQY-2136

2100

3600

≤25

18

23.8

6.8-22

0.074-0.4

180

47

MQY-2145

2100

4500

≤25

24

23.8

8-25

0.074-0.4

245

54

MQY-2230

2200

3000

≤25

18

21.3

6.9-23

0.074-0.4

180

48

MQY-2245

2200

4500

≤25

27

21.3

8.5-26.8

0.074-0.4

280

52

MQY-2430

2400

3000

≤25

23

21.3

7-26

0.074-0.4

245

51

MQY-2436

2400

3600

≤25
